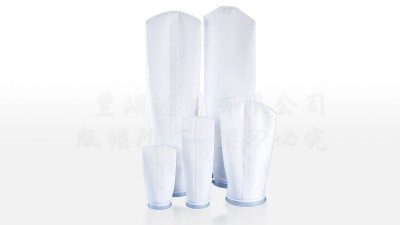

Liquid Filter Bag
Liquid filter bag can remove
contamination, usually used on industrial water treatment system and chemical
treatment equipment. Fengyi provides liquid filter
bags for both industrial standards and customized dimensions. All liquid filter
bags in high efficiency and high performance comply FDA standards.
Filter material:
POLYESTER
PP(Polypropylene)
Nylon
Broadly applied to:
Optoelectronics, electroplating, metal processing, automotive industry,
biomedicine, petrochemical, food and beverage, paint and coating, sewage
treatment and other industries
Top Ring Materials:
SUS304 stainless
steel hoop
Galvanized Steel
Ring
PP plastic ring
No ring opening
Straps
Bonding
Weaved
or welded with supersonic. For different types of fluids, solid particles can
be effectively intercepted and efficiently caught.
Product specifications
| Fabric | PP(Polypropylene) | |||
| Model Diameter&Length | Type1 | Type2 | Type3 | Type4 |
| 7"*16" | 7"*32" | 4"*8" | 4"*15" | |
| Filter area(m²) | 0.21 | 0.41 | 0.07 | 0.093 |
| Flow Rate(GPM) | 90 | 200 | 25 | 45 |
| Micrometer | 0.5 / 1 / 5 / 10 / 25 / 50 / 75 / 100 / 150 / 200 | |||
| Fabric | Polyester | |||
| Model Diameter&Length | Type1 | Type2 | Type3 | Type4 |
| 7"*16" | 7"*32" | 4"*8" | 4"*15" | |
| Filter area (m²) | 0.25 | 0.5 | 0.09 | 0.16 |
| Flow Rate (GPM) | 90 | 200 | 25 | 45 |
| Micrometer | 0.5 / 1 / 5 / 10 / 25 / 50 / 75 / 100 / 150 / 200 | |||
| Fabric | Nylon | |||
| Model Diameter&Length | Type1 | Type2 | Type3 | Type4 |
| 7"*16" | 7"*32" | 4"*8" | 4"*15" | |
| Filter area (m²) | 0.25 | 0.5 | 0.09 | 0.16 |
| Flow Rate (GPM) | 90 | 200 | 25 | 45 |
| Micrometer | 1 / 5 / 10 / 15 / 20 | |||
